Gear hobs are important tools used in gear manufacturing to cut precise and accurate gear teeth. They are widely used in gear cutting machines and make the process fast, efficient, and reliable. Without gear hobs, producing quality gears would be much more difficult and time-consuming.
Gears are used in almost every machine, from small devices to large industrial systems. Gear hobs help produce strong and well-matched gears that ensure smooth motion, less noise, and better performance in machines.
What is Gear Hobs

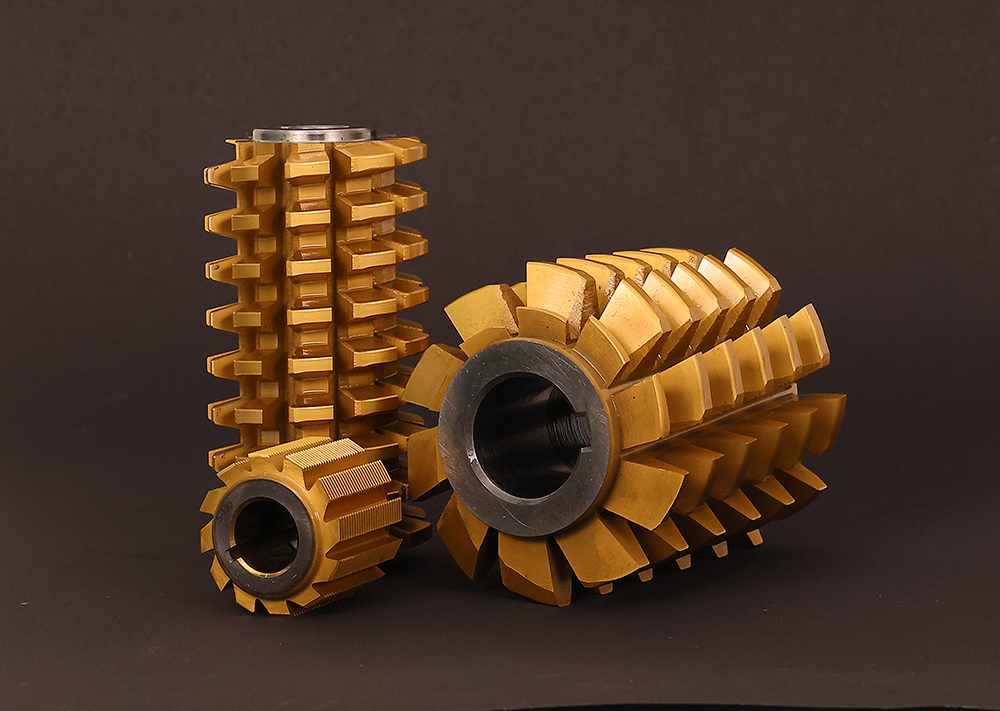

A hobbing Gear is a cutting tool used in gear manufacturing. It is shaped like a cylinder and has helical cutting edges on its surface, known as teeth. During the gear hobbing process, the hob rotates and gradually cuts into a rotating gear blank to form the gear teeth with high accuracy.
Gear hobs are available in different sizes and designs depending on the type of gear being produced. Each hob is made to match a specific gear profile so that the cutting process remains precise and consistent. This helps in producing clean, accurate gear shapes with smooth finishing and reliable performance.
the Hobbing Gears Process
Gear hobbing works by using a rotating cutting tool called a hob to gradually form gear teeth on a metal workpiece known as a gear blank. Both the hob and the gear blank rotate at controlled and synchronized speeds based on the required gear design and number of teeth.
During the process, the hob is slowly fed into the rotating gear blank. As it rotates, the sharp cutting edges of the hob remove small amounts of material step by step. With continuous rotation and feeding, the gear teeth are formed one by one until the full gear profile is completed.
This method is widely used because it is fast, accurate, and suitable for mass production. It is commonly used to manufacture spur gears, helical gears, worm gears, and splines, providing smooth finishing and consistent gear quality.
Different Types of Hobbing Gears
Gear hobs are categorized into different types depending on the gear geometry, application requirements, and manufacturing purpose. Each type is designed to produce a specific gear form with high accuracy, efficiency, and consistency.
Gear Hobs (General Purpose) arsse the most widely used type in gear manufacturing. They are designed for cutting standard gears such as spur gears and helical gears. These hobs are commonly used in automotive, industrial machinery, and power transmission systems due to their versatility and efficiency.
Spline Hobs are specialized tools used to cut splines on shafts. Splines are used to transmit torque between mechanical components while allowing controlled axial movement. These hobs ensure precise spline geometry for smooth fitting and reliable performance in mechanical assemblies.
Chain Sprocket Hobs are used for manufacturing sprockets that work with roller chain systems. They are widely used in conveyors, bicycles, motorcycles, and industrial drive systems. These hobs ensure accurate tooth spacing and profile so that the chain engages smoothly and efficiently.
Worm Gear Hobs are designed for producing worm wheels used in worm gear assemblies. These systems are commonly used in high-reduction gearboxes where smooth, quiet, and efficient power transmission is required. Worm gear hobs create precise tooth profiles for proper meshing between worm and worm wheel.
Involute Hobs are used to produce involute gear profiles, which are the most common gear form used in mechanical engineering. These gears are widely used
in automotive transmissions, robotics, and industrial machinery because of their smooth motion and efficient load distribution.
Special Profile Hobs are custom-designed tools used for manufacturing non-standard or special gear shapes. These hobs are tailored to meet specific engineering requirements where standard gear profiles cannot be used. They are essential in specialized machinery and precision engineering applications.
Helical Hobs are used for cutting helical gears, where the teeth are inclined at an angle to the gear axis. These gears provide smoother and quieter operation compared to spur gears and are commonly used in high-speed machinery, automotive gearboxes, and heavy-duty industrial equipment.
Where Gear Hobs Are Used in Industry
Gear hobs are widely used in automotive, aerospace, and industrial machinery for manufacturing precise gears. They help produce components like gearboxes, transmission systems, and engine parts with high accuracy and efficiency.
They are also used in robotics, wind energy systems, agricultural machinery, and construction equipment where reliable and smooth gear operation is required. From small mechanical devices to large industrial systems, gear hobs play an important role in creating strong, durable, and accurate gears for efficient motion and power transmission.
Benefits of Using Gear Hobs
Gear hobs offer many benefits in gear manufacturing. They provide high precision, ensuring accurate gear tooth shapes and consistent quality in production. The process is very efficient because it uses continuous cutting, making it suitable for mass production and reducing manufacturing time.
Gear hobs can produce different types of gears such as spur, helical, splines, and sprockets using the same basic machine setup. They also deliver a smooth surface finish, which helps gears run quietly and efficiently. In addition, gear hobs have good tool life and are cost-effective, making them widely used in industries like automotive, aerospace, and machinery manufacturing.
How to Select the Proper Gear Hob
Choosing the right gear hob depends on the specific application, and the main factors to consider are:
· Gear Type: Use a hob that resembles the gear to be machined.
· Material: Use hobs with strong metals like HSS or carbide.
· Size: The hob size should resemble the gear blank size.
· Coating: Use a hob whose coating is suitable to your cutting speed and material.
· Thread Type: Use single or multi-thread based on your speed or accuracy needs.
Also, check the pitch tolerance and tool life. For long runs, carbide-coated hob is appropriate. For short runs, HSS is appropriate and less expensive.
In case of doubt, check the machine handbook or ask a tool expert. Make sure you check for quality marks and tool specifications before purchase.
Conclusion
Gear hobs are essential tools in gear manufacturing that help produce precise and reliable gears. They are used to cut different types of gears with high accuracy and efficiency.
Because of their speed, consistency, and versatility, gear hobs are widely used in many industries like automotive, aerospace, and industrial machinery. Overall, they improve productivity and ensure smooth and durable gear performance.
